Over Current Protection

N/T

N/A

Model :

Reference

1.      Equipment :

(1)    AC Source : Chroma 61612

(2)    DC Load : Chroma 63102/63103/63323

(3)    Oscilloscope : Tektronix  MDO 4054C

(4)    Current Probe : Tektronix TCPA300/TCP303

2.      Test Condition :

(1)    AC Input Voltage : Min. and Max. of Input Voltage

(2)    Input Frequency : 60Hz /50Hz

(3)    Use Load :  Min Load

(4)    Temperature :Room Ambient Temperature

(5)   Wavefrom Requirement  :  12V/PG/3.3V/5V/Standby/-12V

3.      Spec :

Over current is a fault condition defined as a 1A/Sec current ramp starting from full load applied to the output

under test. The other outputs may be set to any condition defined in the PSU parametric

specification. A fault on any output will cause the rest of the outputs to latch off/Recovery (also see exception notes

below).

Notes:

1. The output current limits will be satisfied throughout the entire operating temperature range as defined

in Section 5.4

2. A fault on any output other than Standby will not cause the Standby to turn off. A fault on Standby will

cause the other outputs to turn off but not latch off.

3. The Standby output will not latch off. It must return to normal operation once the fault is removed.

4. Under any continuous loading conditions allowed by the over current protections, the power supply

shall not be damaged.

Over current Protection

Outputs

Over Current Limit ( I out Limit )

+3.3V

110% minimum; 150% maximum

+5V

110% minimum; 150% maximum

+5VSB and -12V

Self-protection

+12V rails

110% minimum; 150% maximum

4.      Test Result :

PASS

Output

AC Input

Test  Data

AC Input

Test  Data

Spec

Output Measured

Output Measured

V

A

V*A

V

A

V*A

+12V

90V

12.29V

99.35A

1221.0

264V

12.29V

97.41A

1197.2

110% minimum; 150% maximum

-12V

N/A

N/A

0.0A

N/A

N/A

0.0V

Self-protection

5V

5.095V

29.22A

148.9

5.095V

28.33A

144.3

110% minimum; 150% maximum

3.3V

3.347V

26.33A

88.1

3.355V

31.41A

105.4

110% minimum; 150% maximum

5VSB

4.722V

6.564A

31.0

4.721V

6.927A

32.7

Self-protection

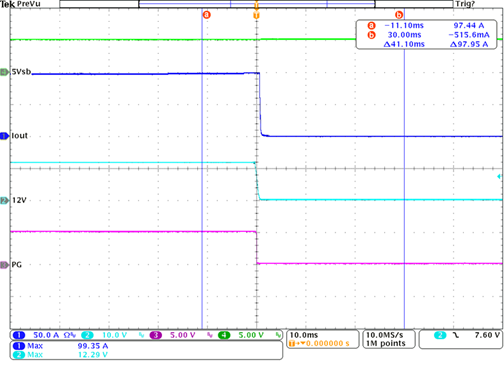

12V 90Vac/60Hz

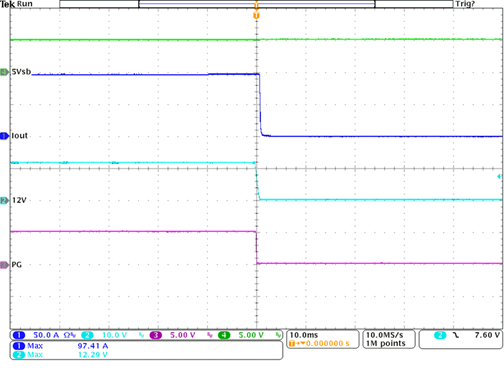

12V 264Vac/50Hz

(1) Iout (2) 12V (3) PG (4) 5Vsb

V

12.29V

I

99.35A

(1) Iout (2) 12V (3) PG (4) 5Vsb

V

12.29V

I

97.41A

-12V 90Vac/60Hz

-12V 264Vac/50Hz

`

N/A

N/A

(1) Iout (2) -12V (3) PG (4) 5Vsb

V

N/A

I

N/A

(1) Iout (2) -12V (3) PG (4) 5Vsb

V

N/A

I

N/A

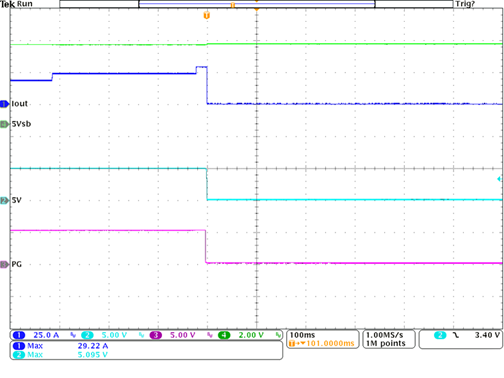

5V 90Vac/60Hz

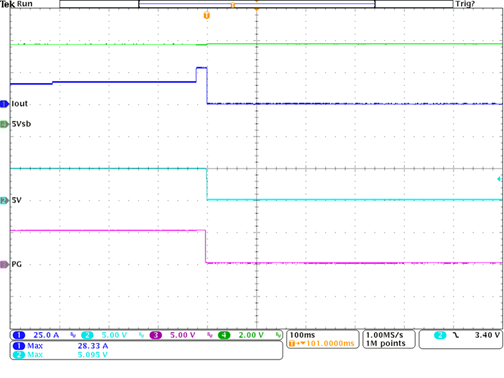

5V 264Vac/50Hz

(1) Iout (2) 5V (3) PG (4) 5Vsb

V

5.095V

I

29.22A

(1) Iout (2) 5V (3) PG (4) 5Vsb

V

5.095V

I

28.33A

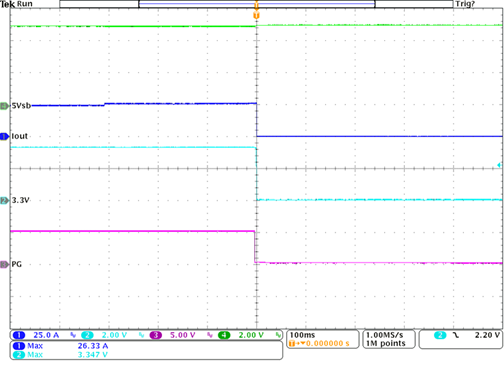

3.3V 90Vac/60Hz

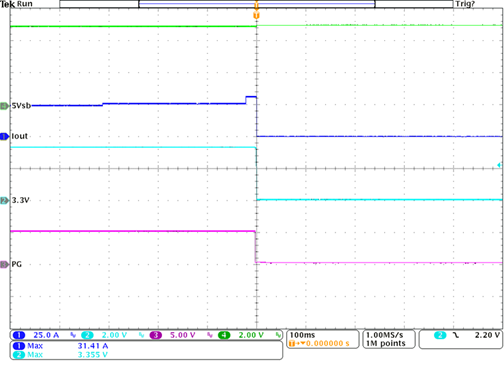

3.3V 264Vac/50Hz

(1) Iout (2) 3.3V (3) PG (4) 5Vsb

V

3.347V

I

26.33A

(1) Iout (2) 3.3V (3) PG (4) 5Vsb

V

3.355V

I

31.41A

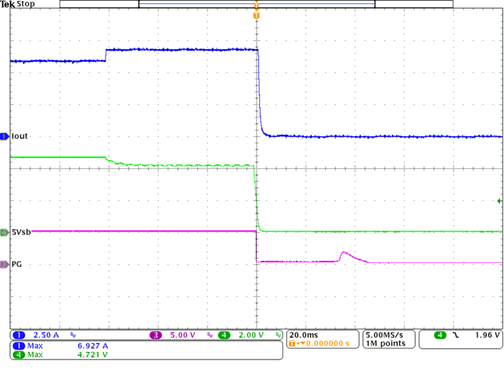

5Vsb 90Vac/60Hz

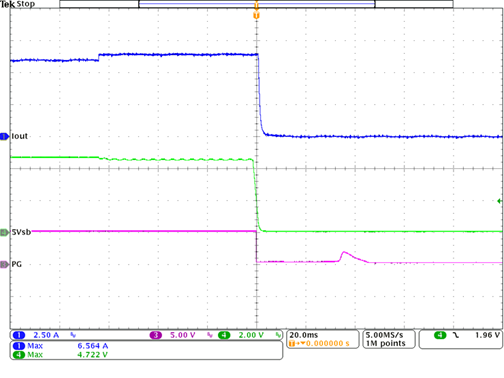

5Vsb 264Vac/50Hz

(1) Iout  (3) PG (4) 5Vsb

V

4.722V

I

6.564A

(1) Iout  (3) PG (4) 5Vsb

V

4.721V

I

6.927A

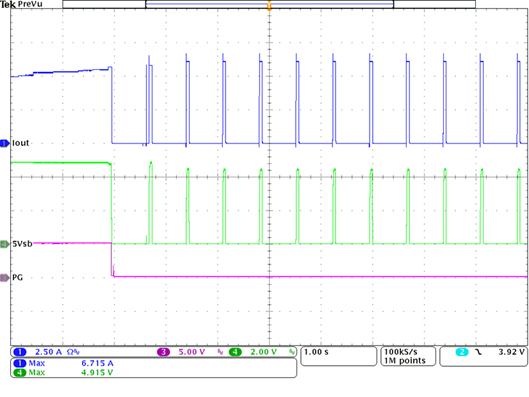

5Vsb 90Vac/60Hz Auto Recovery

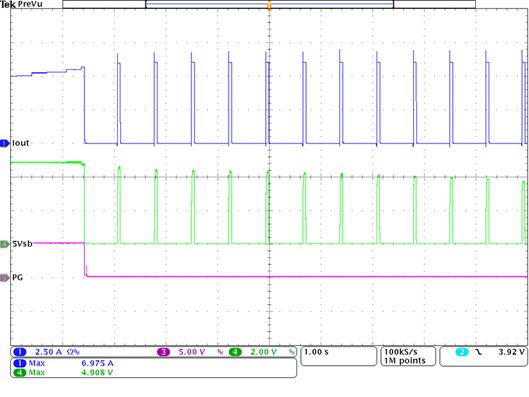

5Vsb 264Vac/50Hz Auto Recovery

(1) Iout  (3) PG (4) 5Vsb

V

4.908V

I

6.975A

(1) Iout  (3) PG (4) 5Vsb

V

4.915V

I

6.715A
