Output Ripple and Noise                             N/T
                                                  N/A
Model :                                                  Reference

1.      Equipment :
               (1)    AC Source : Chroma 6530
              (2)    DC Load : Chroma 63102/63103
                (3)    Oscilloscope : Tektronix TDS 5054B

2.      Test Condition :
  (1)    AC Input Voltage : 90V / 264V
  (2)    Input Frequency : 60Hz /50Hz
  (3)    Load Condition :  as Below Table
  (4)    Temperature :Room Ambient Temperature
  (5)   Wavefrom Requirement  :  12V/5V/3.3V/Standby/-12V

3.      Spec :
  Ripple and noise are defined as a periodic or random signals over a frequency band of 10 Hz to 20 MHz. Measurements shall be made with an oscilloscope with 20 MHz bandwidth. Outputs should be bypassed at the connector with a 0.1uF ceramic disk capacitor and a 10uF electrolytic capacitor to simulate system loading, the environment setup shall follow the latest Intel design guideline with BNC connector to minimize the measurement loop.




Measurements will be made with an oscilloscope set to 20MHz bandwidth limit. The outputs will be bypassed
with one 0.1uF multilayer (type X7R) and one 10uF (50mOhms or less) capacitors, it is acceptable of putting
a 47 uF low ESR cpacitor to simluate system capacitive load, if the EE specificiation specifies this requirement.
The BNC connector shall be applied during measurement.
4.      Test Result : PASS



    12V 5V 3.3V -12V 5Vsb
Load1 90V/60HZ 14.4mV 8.8mV 16.0mV 8.4mV 22.8mV
264V/50HZ 12.0mV 10.4mV 8.8mV 8.8mV 21.2mV
Load2 90V/60HZ 51.2mV 17.6mV 23.6mV 9.6mV 31.6mV
264V/50HZ 50.4mV 16.8mV 14.4mV 8.8mV 26.4mV
Load7 90V/60HZ 44.8mV 14.4mV 11.2mV 9.6mV 36.4mV
264V/50HZ 44.8mV 14.4mV 11.2mV 8.8mV 36.4mV
Load8 90V/60HZ 55.2mV 40.8mV 14.0mV 9.6mV 37.6mV
264V/50HZ 56.0mV 38.4mV 10.8mV 10.4mV 37.2mV
Load9 90V/60HZ 52.8mV 16.8mV 16.8mV 9.6mV 36.4mV
264V/50HZ 51.2mV 17.6mV 17.2mV 8.8mV 38.0mV
Spec <120mV <50mV <50mV <120mV <50mV

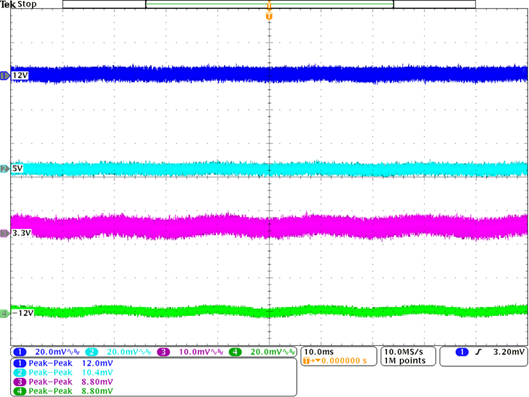

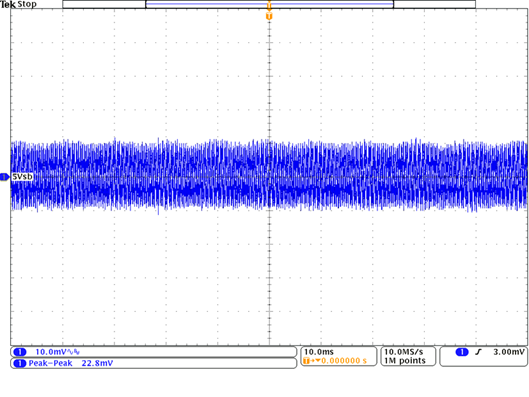

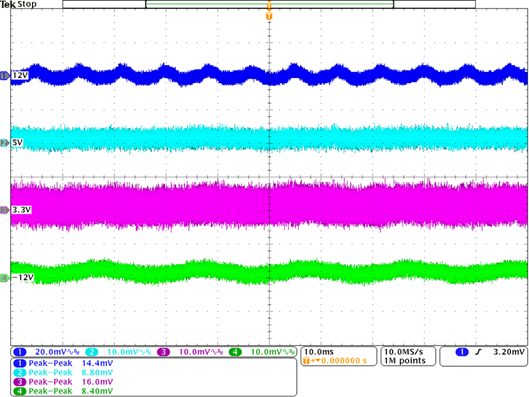

90Vac/60Hz Load1 90Vac/60Hz Load1
58

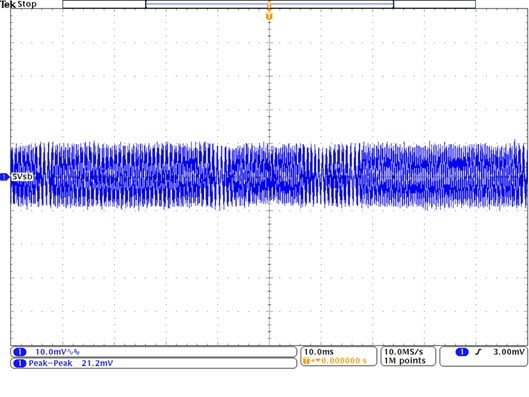

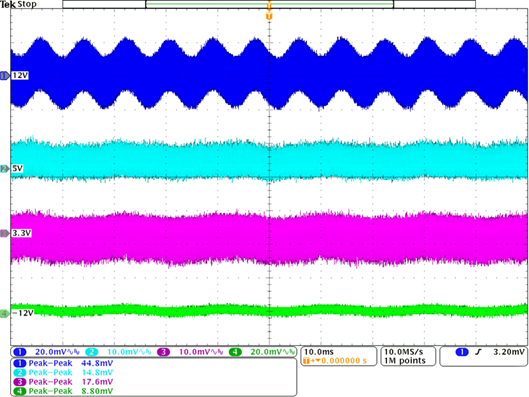

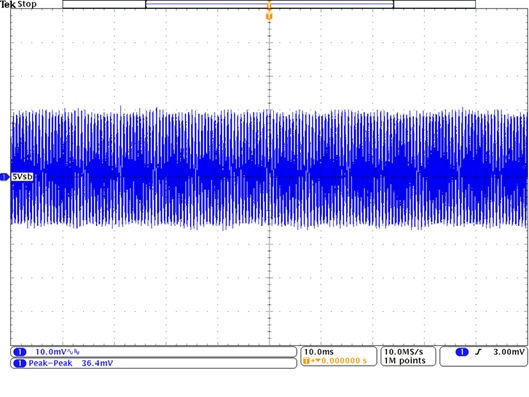

(1) 12V (2) 5V (3) 3.3V  (4) -12V (1)  5Vsb

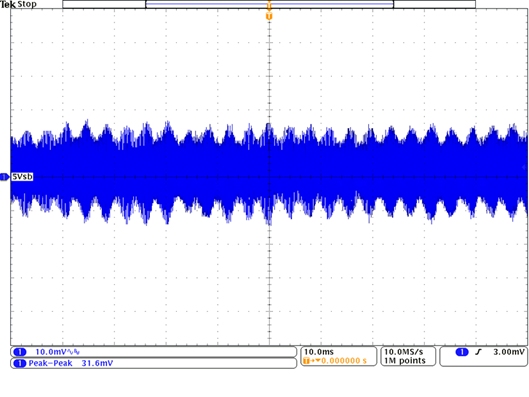

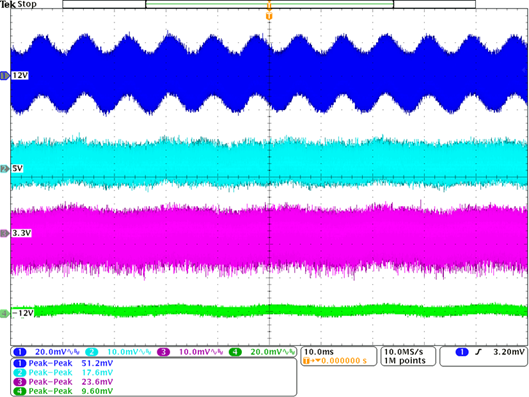

90Vac/60Hz Load2 90Vac/60Hz Load2
(1) 12V (2) 5V (3) 3.3V  (4) -12V (1) 5Vsb

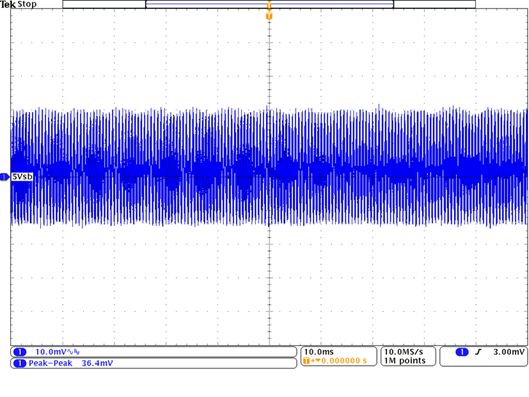

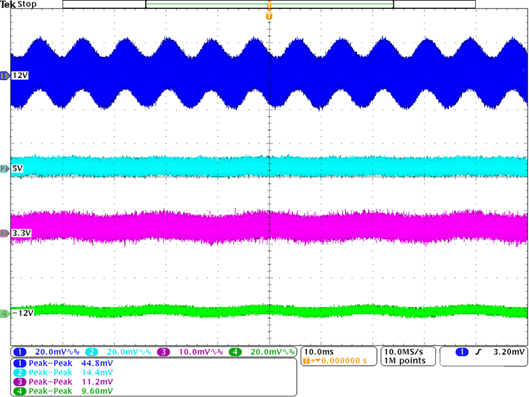

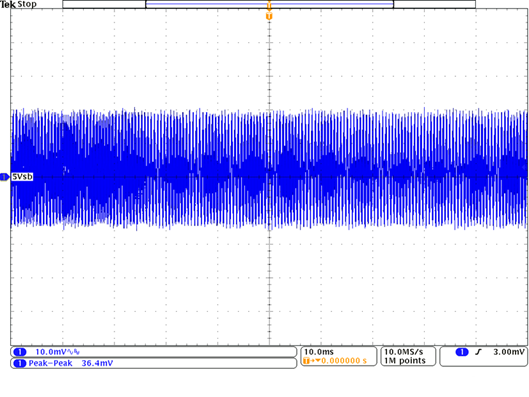

90Vac/60Hz Load7 90Vac/60Hz Load7
(1) 12V (2) 5V (3) 3.3V  (4) -12V (1)  5Vsb

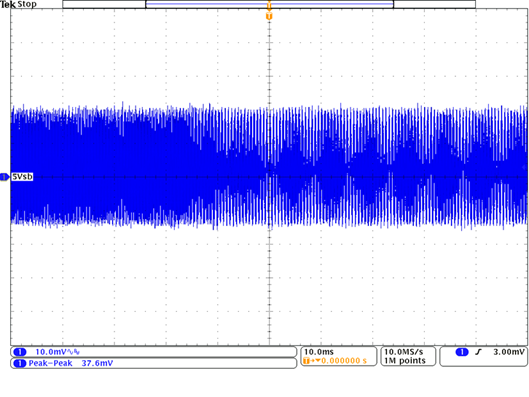

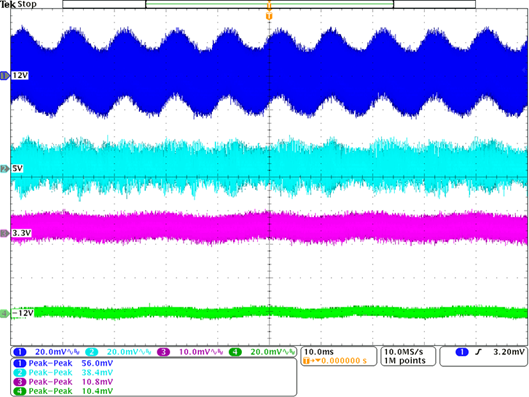

90Vac/60Hz Load8 90Vac/60Hz Load8
(1) 12V (2) 5V (3) 3.3V  (4) -12V (1) 5Vsb

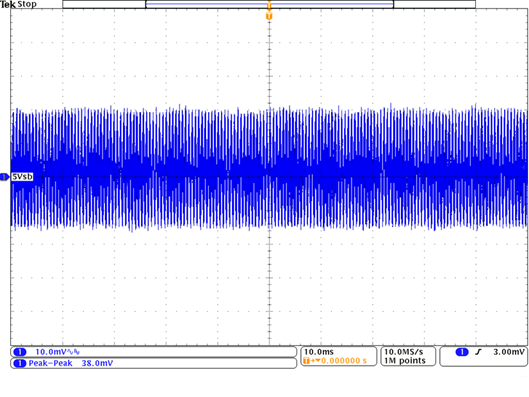

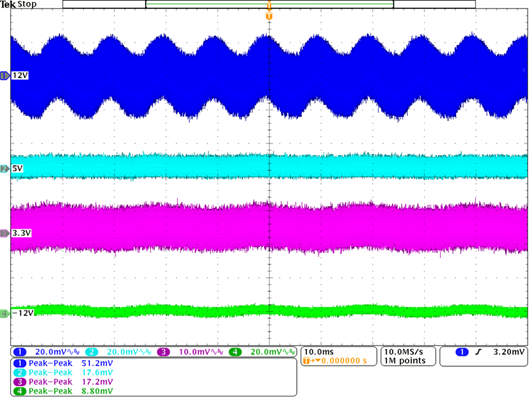

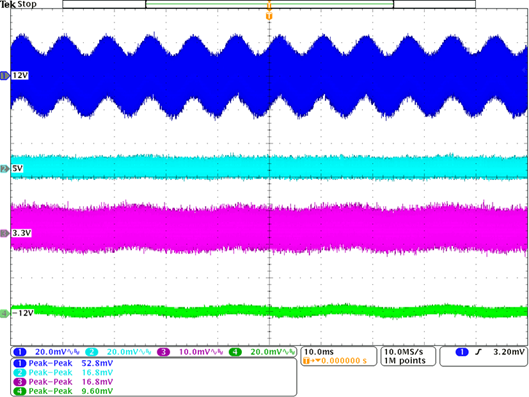

90Vac/60Hz Load9 90Vac/60Hz Load9
(1) 12V (2) 5V (3) 3.3V  (4) -12V (1)  5Vsb
2

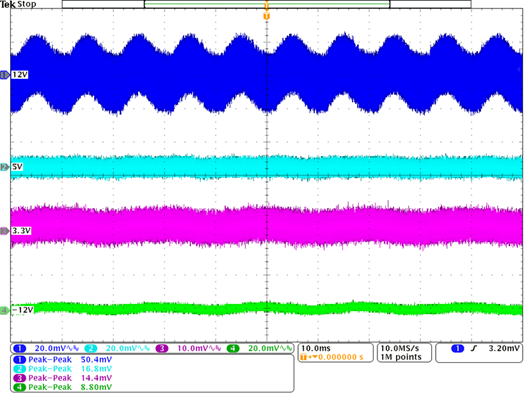

264Vac/50Hz Load1 264Vac/50Hz Load1
(1) 12V (2) 5V (3) 3.3V  (4) -12V (1) 5Vsb

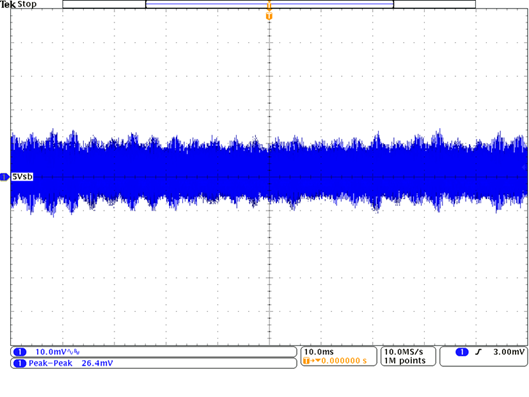

264Vac/50Hz Load2 264Vac/50Hz Load2
(1) 12V (2) 5V (3) 3.3V  (4) -12V (1)  5Vsb
264Vac/50Hz Load7 264Vac/50Hz Load7
55
(1) 12V (2) 5V (3) 3.3V  (4) -12V (1) 5Vsb

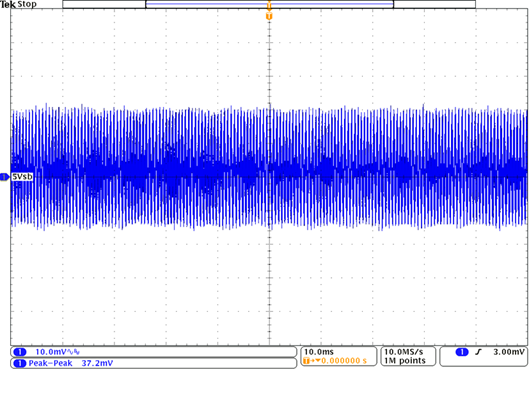

264Vac/50Hz Load8 264Vac/50Hz Load8
(1) 12V (2) 5V (3) 3.3V  (4) -12V (1) 5Vsb
264Vac/50Hz Load9 264Vac/50Hz Load9
(1) 12V (2) 5V (3) 3.3V  (4) -12V  (1) 5Vsb
